Project Overview

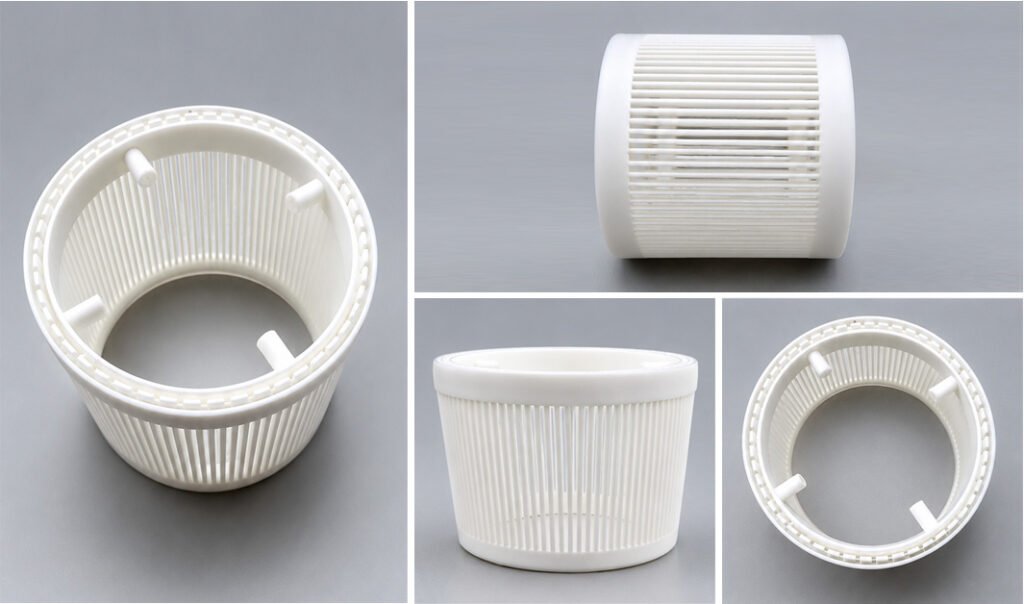

This project demonstrates the capabilities of SLA (Stereolithography) 3D Printing in producing highly detailed and dimensionally accurate prototype components.
The customer required a lightweight cylindrical part featuring dozens of evenly spaced thin-wall slots, excellent concentricity, and a premium surface finish. Traditional machining or injection molding would have significantly increased development cost and lead time.
By utilizing SLA resin printing, the prototype was completed quickly while maintaining outstanding accuracy and visual quality.
Project Requirements
The customer’s engineering team requested:
- Extremely thin wall structures
- Uniform slot spacing
- Excellent roundness
- Smooth cosmetic surface
- Fast turnaround
- Low prototype cost
- Functional design verification before tooling
These requirements made SLA additive manufacturing the ideal solution.
Manufacturing Challenges
This component presented several technical challenges:
Thin-Wall Geometry
The numerous vertical ribs required excellent printing precision to prevent deformation or breakage.
Dimensional Accuracy
The cylindrical profile required high concentricity to ensure compatibility with mating components during assembly.
Surface Quality
The prototype was intended for customer evaluation, making surface appearance nearly as important as dimensional accuracy.
Support Removal
Careful support placement and post-processing were necessary to avoid damaging the delicate ribs.
Our SLA Printing Solution
XJHMFG selected industrial SLA technology combined with high-performance engineering resin to manufacture the prototype.
Process
- High-resolution SLA printing
- Precision support optimization
- UV curing
- Manual support removal
- Surface cleaning
- Final dimensional inspection

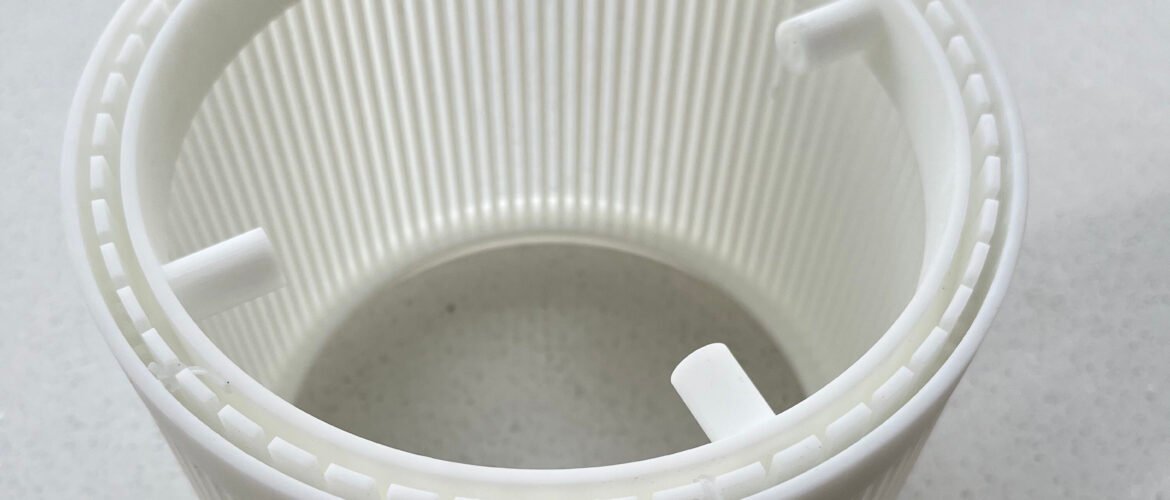

The finished component maintained excellent geometric consistency across the entire circumference.
Technical Highlights
| Feature | Result |
|---|---|
| Manufacturing Process | SLA 3D Printing |
| Material | Photosensitive Resin |
| Surface Finish | Smooth Matte Finish |
| Accuracy | High Precision |
| Wall Structure | Ultra-Thin Vertical Ribs |
| Lead Time | Rapid Prototype Delivery |
| Application | Functional Prototype |
Why SLA Was the Best Choice
Compared with CNC machining or injection molding, SLA printing offered several advantages.
Exceptional Detail Resolution
The narrow slots and thin ribs were reproduced with outstanding consistency.
Superior Surface Finish
Unlike FDM printing, SLA produces nearly invisible layer lines, making prototypes suitable for presentation and appearance evaluation.
Fast Product Development
Without tooling investment, the customer received production-quality prototype parts within days.
Cost-Effective Validation
Design modifications could be completed rapidly before moving to injection mold manufacturing.
Applications
This type of precision SLA prototype is commonly used for:
- Filter housings
- Airflow components
- Medical device prototypes
- Laboratory equipment
- Consumer electronics
- Industrial equipment
- Fluid management systems
- Optical device development
Project Results
The finished prototype successfully met the customer’s requirements for:
- Excellent dimensional accuracy
- Smooth cosmetic appearance
- Uniform wall thickness
- Stable cylindrical geometry
- Reliable assembly testing
- Rapid delivery schedule
Following successful validation, the customer proceeded to the next stage of product development.
Why Choose XJHMFG for SLA Prototyping
At XJHMFG, we specialize in rapid prototyping solutions that help customers shorten product development cycles while maintaining exceptional quality.
Our capabilities include:
✓ Industrial SLA 3D Printing
✓ High-Precision Resin Parts
✓ Functional Prototype Manufacturing
✓ Engineering Support
✓ Rapid Design Iteration
✓ Low-Volume Production
✓ CNC Machining
✓ Vacuum Casting
✓ Injection Mold Manufacturing
Whether you need a single prototype or a complete product development solution, our engineering team can recommend the most efficient manufacturing process.
