Project Overview
Custom Injection Molded Toolbox for Professional Tool Storage
A global customer required a durable, lightweight, and cost-effective plastic toolbox solution for organizing and protecting professional tools.
XJH provided a complete manufacturing solution, including:
- Plastic product design optimization
- Injection mold development
- Prototype validation
- Injection molding production
- Surface finishing and quality inspection

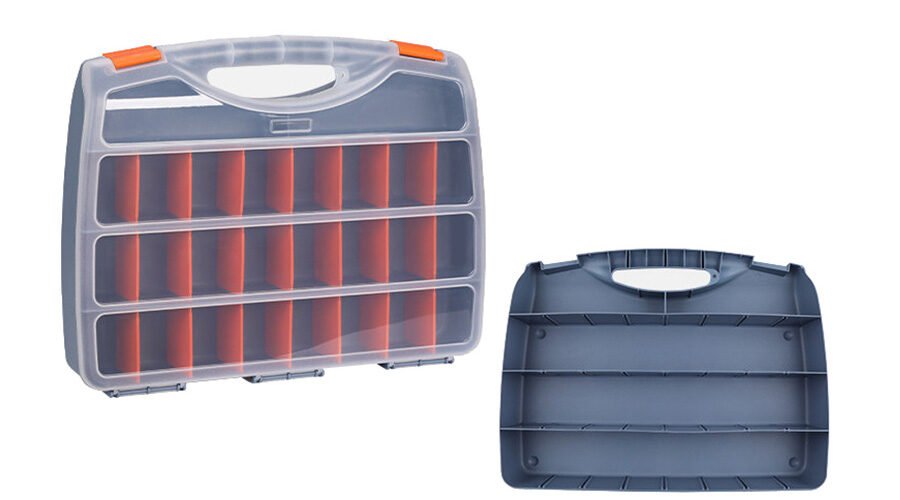

The final toolbox features a strong structural design, transparent protective cover, integrated handle, and durable plastic housing suitable for repeated industrial use.
Project Details
| Item | Specification |
|---|---|
| Product | Custom Plastic Toolbox |
| Manufacturing Process | Injection Molding |
| Material | PP (Base) + PC (Lid) |
| Application | Tool Storage / Industrial Equipment |
| Service | Mold Design + Mass Production |
| Production Type | OEM Custom Manufacturing |
Customer Challenge
Developing a Durable and Practical Plastic Tool Case
The customer needed a customized toolbox that could meet several requirements:
1. Strong Impact Resistance
The toolbox needed to withstand daily handling, transportation, and workshop environments.
The housing structure required:
- High mechanical strength
- Good impact resistance
- Long service life
2. Lightweight Design
Compared with traditional metal tool cases, the customer wanted a lighter solution that was easier to carry.
The injection molded plastic structure helped achieve:
- Reduced product weight
- Lower production cost
- Improved user experience
3. Integrated Product Structure
The toolbox design included:
- Ergonomic handle
- Multiple storage compartments
- Transparent front cover
- Snap-fit assembly structure
This required precise mold design to ensure accurate fitting between components.
Our Manufacturing Solution
Injection Mold Design and Development
Based on the customer’s product requirements, our engineering team optimized the toolbox structure for injection molding.
Key considerations included:
Mold Flow Optimization
We analyzed:
- Material filling direction
- Wall thickness distribution
- Cooling efficiency
- Potential deformation areas
to improve molding stability and reduce defects.
Design for Manufacturing (DFM)
Before mold production, we reviewed:
- Draft angles
- Rib structures
- Assembly tolerance
- Ejection system
This helped ensure smooth production and consistent quality.
Injection Molding Production
After mold testing and validation, the toolbox entered mass production.
The manufacturing process included:
1. Plastic Material Preparation
Selected engineering plastic materials provide:
- Good toughness
- Chemical resistance
- Long-term durability
2. Injection Molding
The molten plastic material is injected into the precision mold cavity under controlled pressure and temperature.
This process ensures:
- Stable dimensions
- Repeatable quality
- High production efficiency
3. Assembly & Inspection
Each toolbox component was inspected for:
- Appearance quality
- Assembly accuracy
- Functional performance
Product Features
Durable Plastic Housing
The injection molded shell provides:
✔ Impact resistance
✔ Lightweight structure
✔ Long service life
Transparent Protective Cover
The clear cover allows users to quickly identify stored tools while protecting internal components from dust and damage.
Functional Storage Design
The toolbox includes:
- Multiple storage areas
- Easy carrying handle
- Organized tool placement
Manufacturing Advantages
Why Choose Injection Molding for Plastic Toolboxes?
Injection molding is ideal for products requiring:
High Volume Production
Once the mold is developed, injection molding provides:
- Consistent production quality
- Lower unit cost
- Fast cycle time
Complex Plastic Structures
Injection molding allows manufacturers to create:
- Reinforcing ribs
- Snap-fit structures
- Integrated handles
- Customized shapes
Reliable Product Quality
Precision tooling ensures every produced toolbox maintains consistent dimensions and performance.
Application
This custom plastic toolbox can be used for:
- Professional tool storage
- Electrical maintenance tools
- Automotive repair tools
- Industrial equipment accessories
- Household organization
XJH Manufacturing Capability
At XJH, we provide complete OEM manufacturing services for custom plastic products.
Our capabilities include:
Plastic Injection Molding
Mold Manufacturing
- Prototype molds
- Production molds
- Multi-cavity molds
- Precision tooling
Engineering Support
From initial concept to mass production, our team helps customers optimize designs, reduce manufacturing costs, and improve product reliability.
Request a Quote for Your Custom Plastic Product
Looking for a reliable plastic injection molding manufacturer?
XJH provides:
✔ Custom mold development
✔ Injection molding production
✔ OEM/ODM manufacturing
✔ Global export service
Contact our engineering team to discuss your next plastic product project.
