Plastic Injection
Molding
High-speed automated injection molding with robotic arm handling — from 500-piece prototype runs to 500,000+ piece mass production. Consistent quality, cycle after cycle.
Production-Scale
Injection Molding

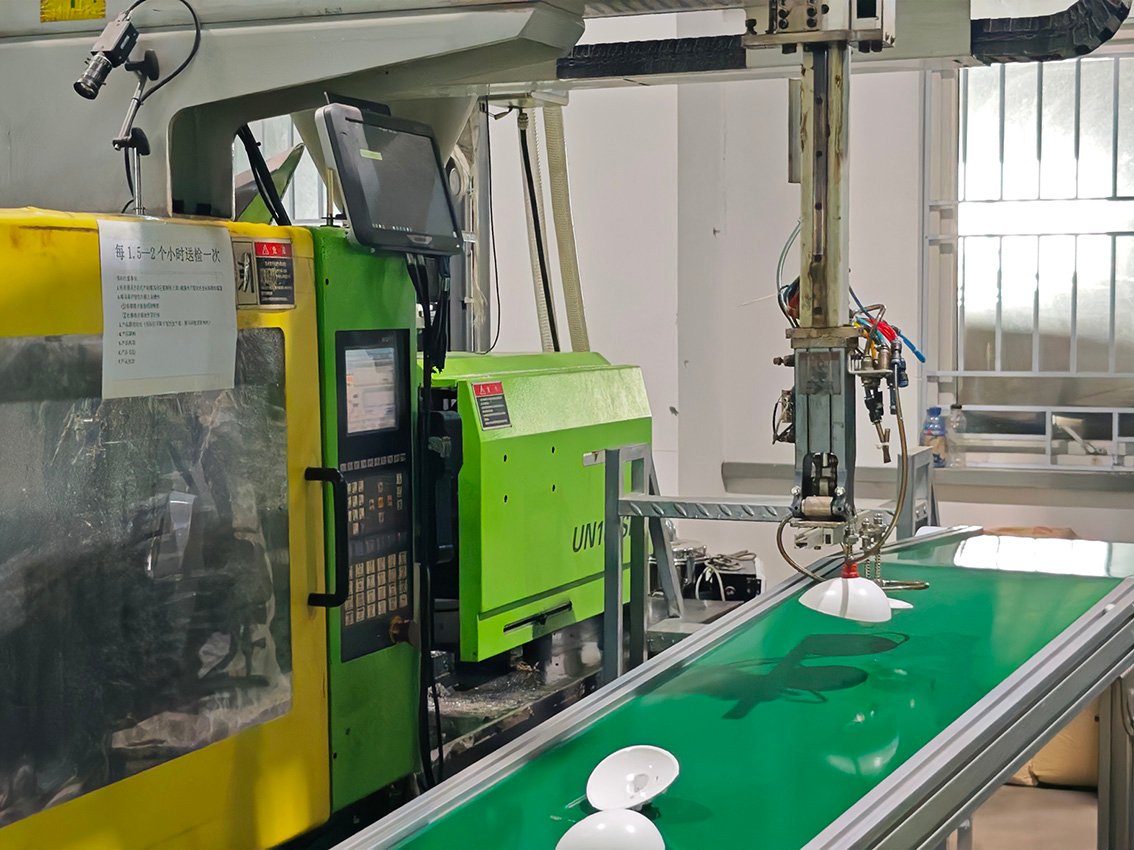

Our injection molding hall houses 10+ automated machines ranging from 50-ton to 1,200-ton clamping force — covering everything from small precision components to large structural enclosures.
Every machine is equipped with robotic arm part removal, eliminating manual handling variability and enabling true 24/7 unattended production. This means consistent cycle times, consistent quality, and predictable output regardless of order size.
Whether you need 500 prototype units to validate a new product, or 500,000+ pieces for a retail launch, we have the right tonnage zone and tooling setup to run it efficiently — without re-quoting or re-tooling delays.
All molding is done in-house, alongside our CNC and mold-making departments, so engineering changes during production ramp-up can be resolved same-day, not in weeks.
Machine & Process Specs
Full transparency on what our machines can do — so you know exactly what to expect before you submit a drawing.
From Order to Shipment
A streamlined production workflow — every step is monitored and quality-checked before the part moves forward.
Resin pulled from our 50+ grade in-house warehouse, dried and conditioned to spec before loading into hoppers.
Mold mounted on the appropriately-sized press, parameters loaded from validated process sheet, first-shot trial run.
Robotic arms remove parts every cycle. Operators perform periodic dimensional spot-checks and visual inspection.

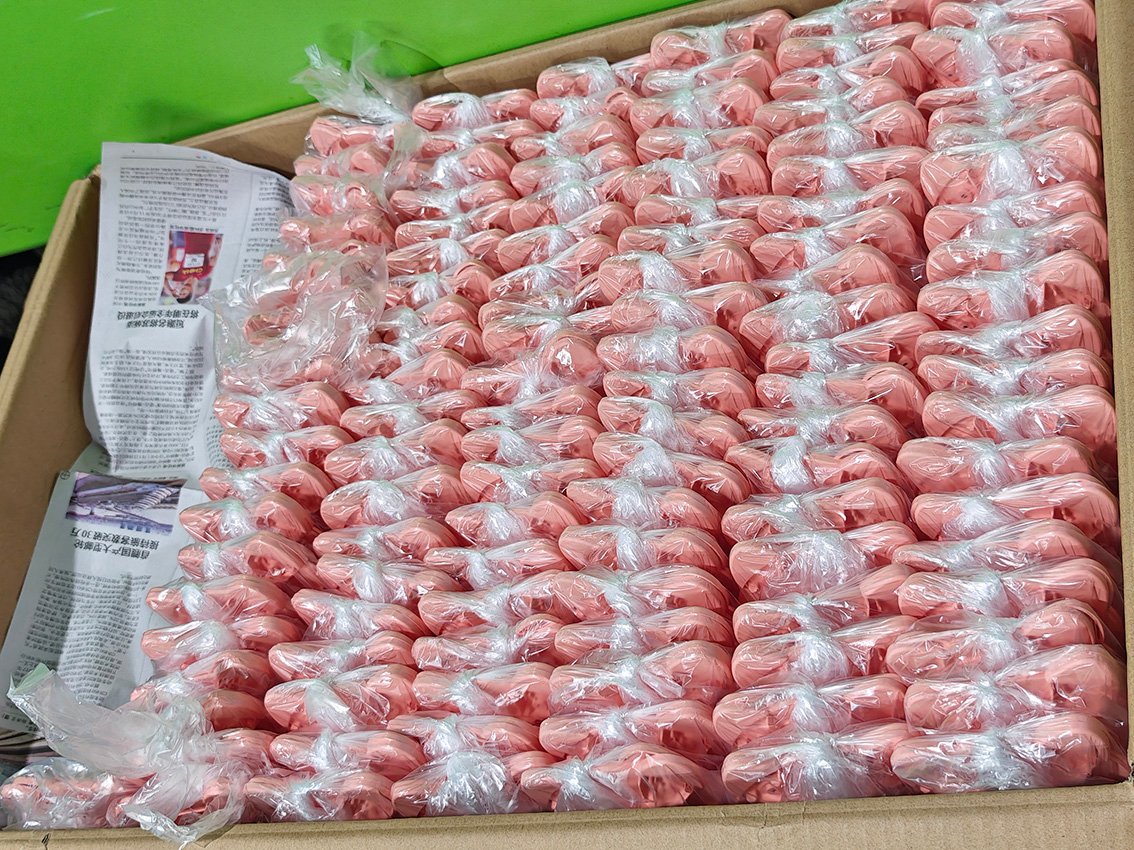

100% visual inspection, dimensional sampling per AQL, then packed to your specification for export.
Tolerance & Finish Options
Choose the right precision level for your application — tighter tolerances are available with engineering review.
| Tolerance Class | Typical Range | Best For | Cost Impact |
|---|---|---|---|
| Standard (Commercial) | ±0.10 – 0.15mm | Housings, covers, non-mating parts | Most Economical |
| Precision (Our Default) | ±0.05mm | Snap-fits, assemblies, functional parts | Standard |
| Fine / Tight Tolerance | ±0.02 – 0.03mm | Gears, bearings, sealing surfaces | Engineering Review |
| SPI A1–A3 (High Gloss) | Ra 0.02–0.1 µm | Cosmetic / optical surfaces | Polish Required |
| SPI B1–C3 (Matte / Satin) | Ra 0.4–1.6 µm | General consumer / industrial parts | Standard |
| SPI D1–D3 (Textured) | EDM / sandblast textures | Grip surfaces, anti-glare, branding | Standard |
Common Use Cases
Real parts we've produced — across automotive, consumer goods, and industrial applications.
Multi-piece enclosures with snap-fit assembly, ventilation, and clean matte finish.

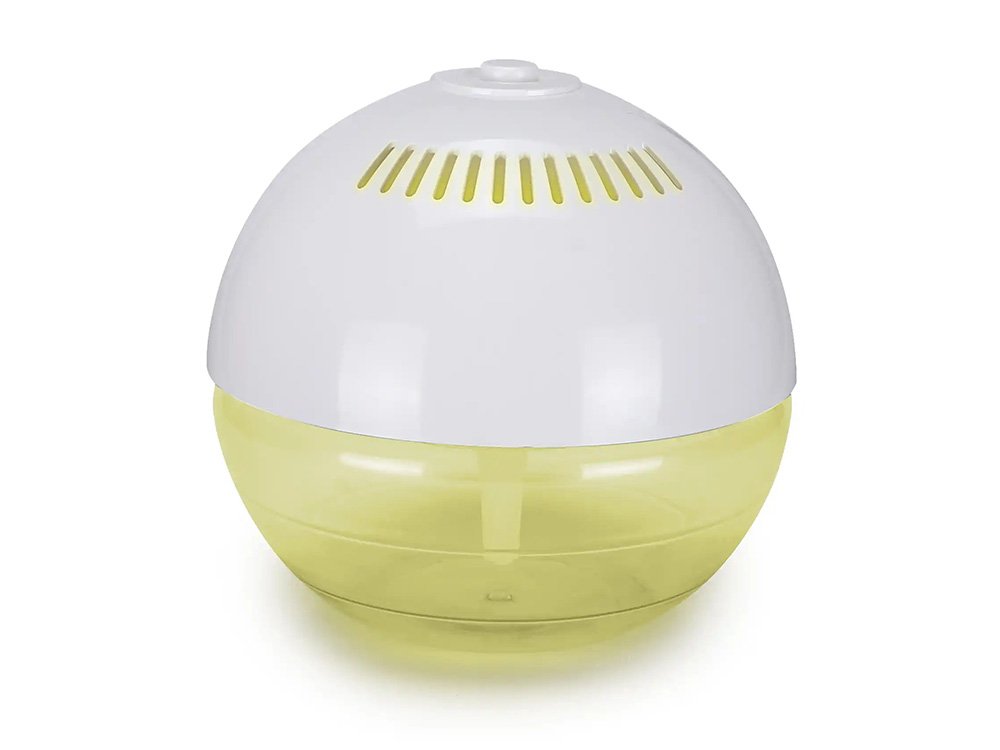

Diffuser shells and lamp shades in gloss white with precision mounting features.

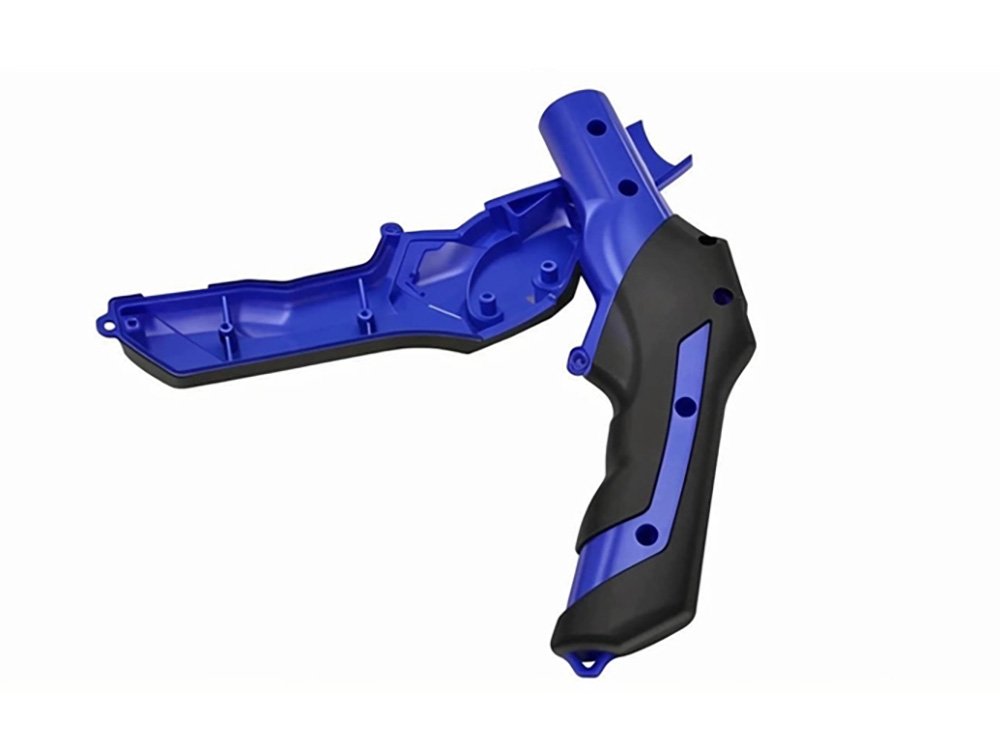

Pantone-matched parts with snap-lock features and thin-wall geometry down to 1.2mm.
Common Questions
For parts requiring a new mold, our MOQ starts at 500 pieces. For repeat orders on existing tooling, there's no strict minimum — we can run as few as 200 pieces depending on the part.
Yes. We mix masterbatch in-house against Pantone, RAL, or a physical color chip you provide. First-article samples are sent for your color approval before mass production.
Yes — common combinations include ABS+TPE and PP+TPR for soft-touch grips, seals, and dual-durometer parts. Let us know your application and we'll recommend a material pairing.
For existing molds with materials in stock, production typically takes 7–12 days. Because we maintain 50+ resin grades on hand, your reorder doesn't wait on material procurement.
Ready to Get Pricing for Your Part?
Send your drawing, sample, or description — free DFM review and quote within 24 hours.
